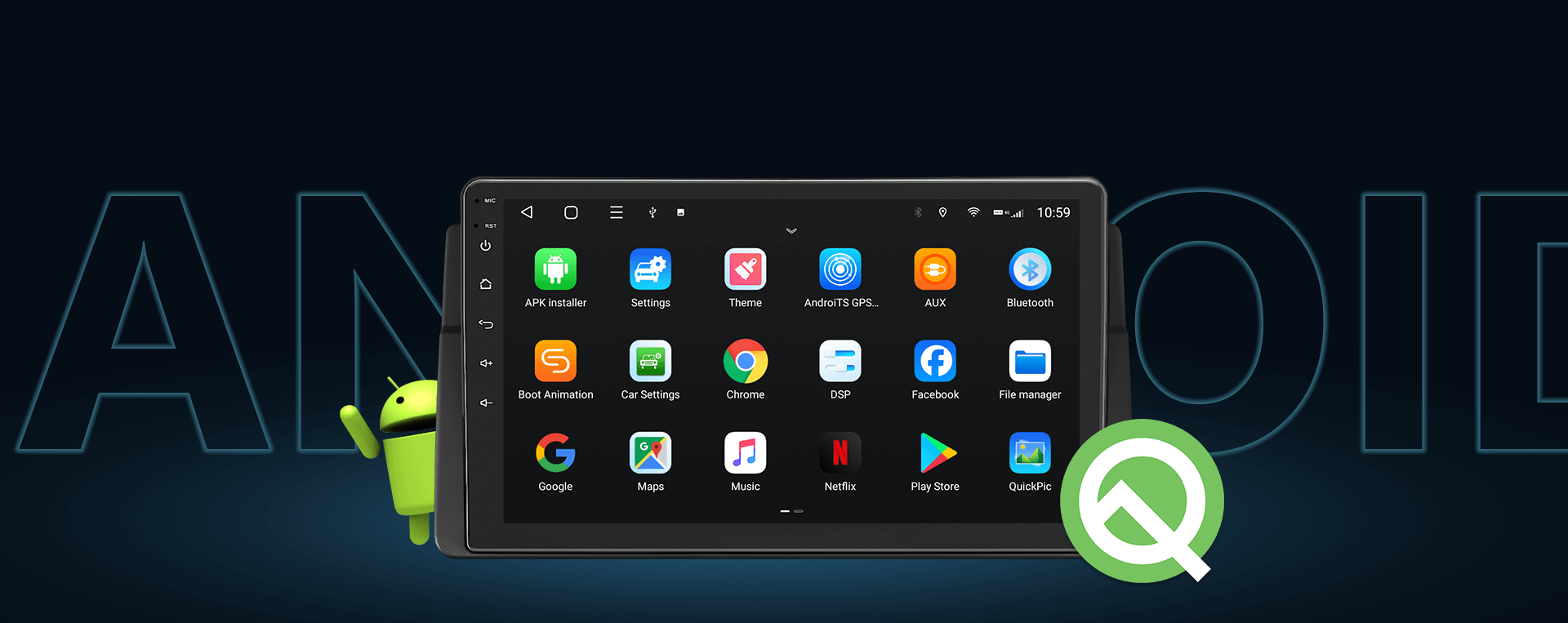

System Information | Android 10 |
| Unisoc UIS8581A [8-core A55,1.6GHZ] |
| 3GB RAM |
| 32GB ROM |
Parameter | Operating voltage: DC12V |
| Maximum operating current: ≤ 10A |
| Gross weight: 2.5 kg |
| Net weight: 1.4 kg |

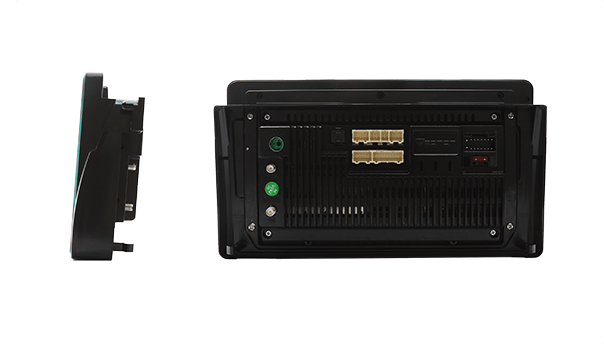

| Installation size: 178mm(Width) * 20mm(Depth) * 75mm(Height) |
| Panel size: 228mm(Upper Width) * 135mm(Height) * 246mm(Lower Width) |

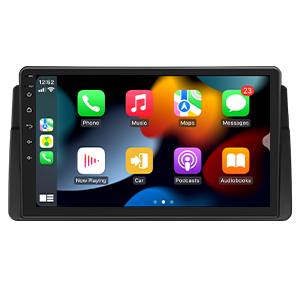

Screen | 9 inch HD IPS full touchscreen |
| 1280*720 resolution |
| Touchscreen: Multi-Touch capacitive touchscreen |
Radio | 36preset radio stations(18AM, 18 FM) |
Bluetooth | Version: Bluetooth 5.0 |
| Bluetooth hands-free calling and audio streaming |
| Built-in microphone & external microphone (INCLUDED) |

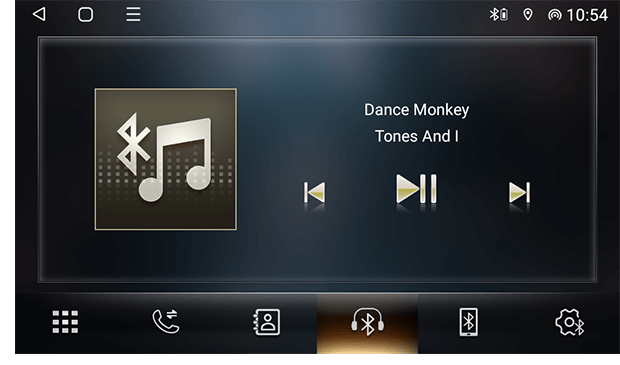

| Support Bluetooth music player/phonebook |
| Support Eonon V0056 OBD2 diagnostic tool (NOT INCLUDED) |
| Bluetooth name: CarKit-blink |
| Bluetooth password: 0000 |

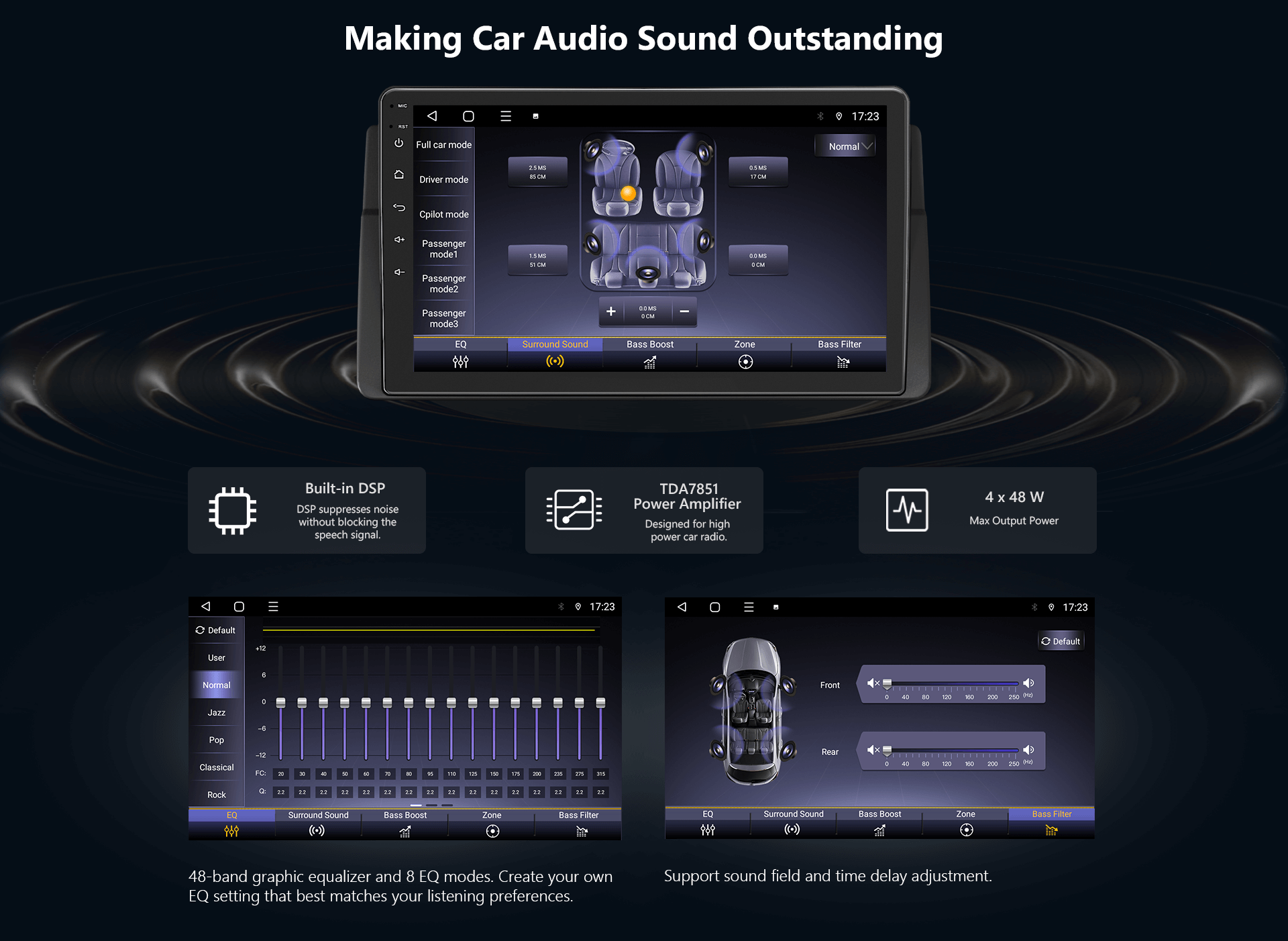

Audio | Built-in DSP |
| 48-band graphic equalizer |
| 4x45W amplifier output |
| EQ modes: User\Normal\Jazz\Pop\Classical\Rock\Sofl\Vocal\Heavy metal |
| Built-in Amplifier: 4-channel FR/FL/RR/RL and two subwoofer audio outputs |
USB | 2 USB slots |
| Support USB flash drive and MP3 player. |
| Video formats: Support AVI, MKV, MP4, WMV, RMVB, MPG...All Android video formats, Web video and 1080P video. |
| Audio formats: Support MP3, WMA, WAV, OGG, FLAC, Web audio etc. |
| Picture formats: Support JPEG, BMP, PNG,TIFF etc. |

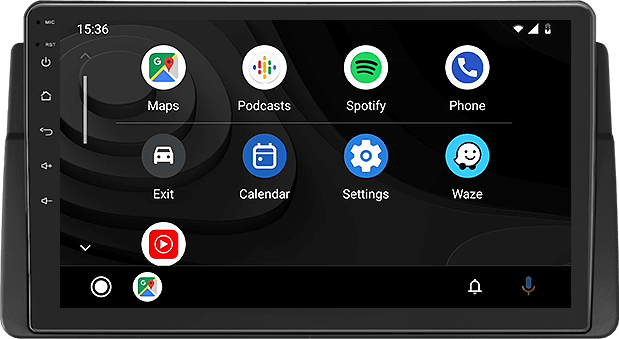

Other Features | Wired & Wireless Android Auto (Note: 1. Please make sure that your phone supports Google services and Android Auto. 2. Some phones only support wired Android Auto.) |

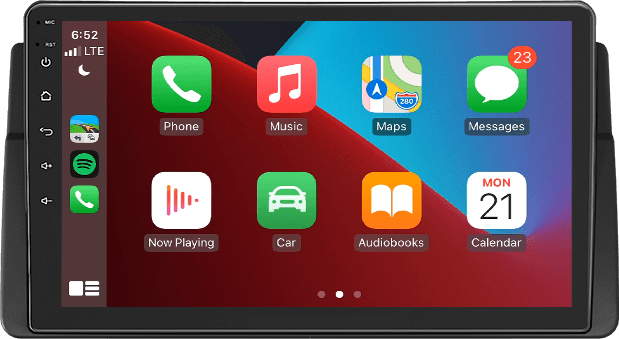

| Wired & Wireless Apple CarPlay |

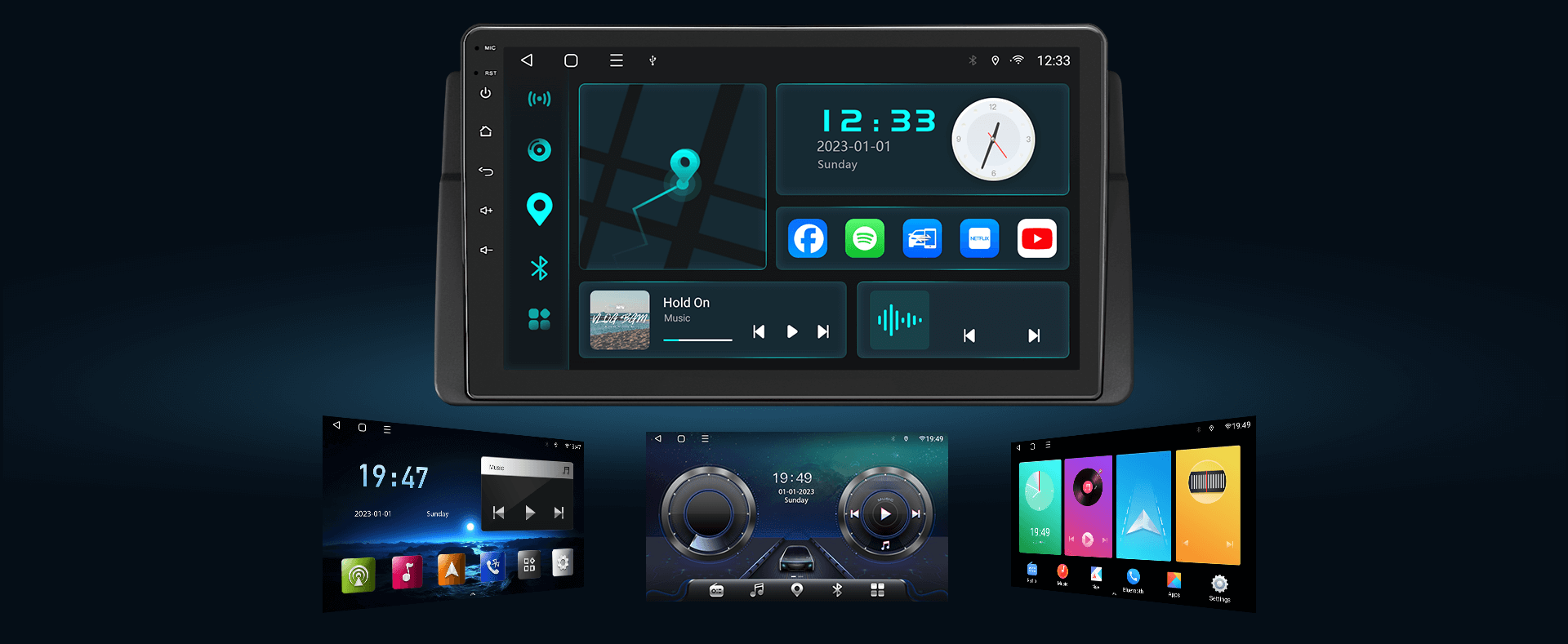

| Built-in 4 sets of UI themes |
| Support steering wheel controls |

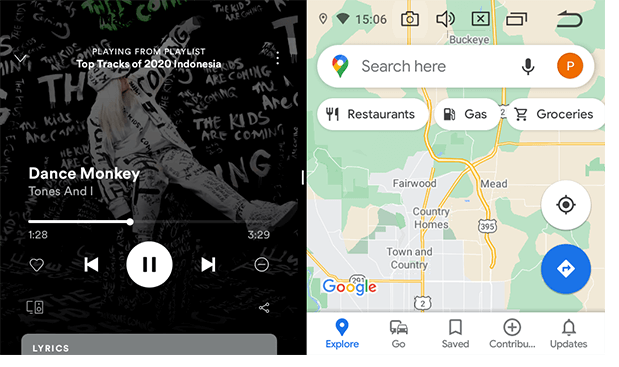

| Support screen multitasking |
| Color of button light: White |
| Support Wi-Fi |
| Support 4G dongle(NOT INCLUDED) |
| Support Eonon dashcam(NOT INCLUDED) |
| Support customizing startup logo |
| Support app installation |
| Support 1080P AHD backup camera(NOT INCLUDED) |
| Support time display |
| Support power-off memory |
