| General |
| Specific car models | VW: BORA(2006-2015)/CADDY(2003-2015)/EOS(2006-2015)/GOLF (2007-2012)/JETTA(2006-2015)/LAVIDA(2011-2012)/ MAGOTAN(2006-2012)/ NEW SHARAN(2010-2013)/ PASSAT(2006-2013)/ SAGITAR(2005-2015)/ SCIROCCO(2008-2015) /TOURAN(2003-2013)/ TIGUAN(2007-2015) SEAT: ALTEA (2004-2013)/LEON(2004-2012)/TOLEDO(2012-2013) SKODA: FABIA(2004-2013)/PRAKTIK(2007-2011)/ROOMSTER(2003-2010)/ RAPID(2012-2013)/ SUPERB(2010-2012) (Please confirm your vehicle chassis number and center console before purchasing) |
| Installation type | ISO 2 DIN Size |
| Installation Size | 178(length)×150(width)×100(height)mm |
| Panel Size | 220(length) x 135(height)mm |
| Gross Weight | 2.65Kg |
| Net Weight | 1.75Kg |
| Power Supply | DC 12V |
| Max Working Current | 15A |
| Steering Wheel Control Function | Yes |
| Menu Language | 70 kinds of languages, including English/Spanish/French/German/Portuguese/Italian/Russian/Turkish/Norwegian/Polish, etc |
| Auto-memory Function | Yes |
| External MIC Support | Yes |
| Operation System | Android 4.4.4 |
| CPU | RK3188 1.6GHz Cortex A9 Quad-Core |
| RAM | SAMSUNG DDR3, 1GB |
| Storage | 16 GB |

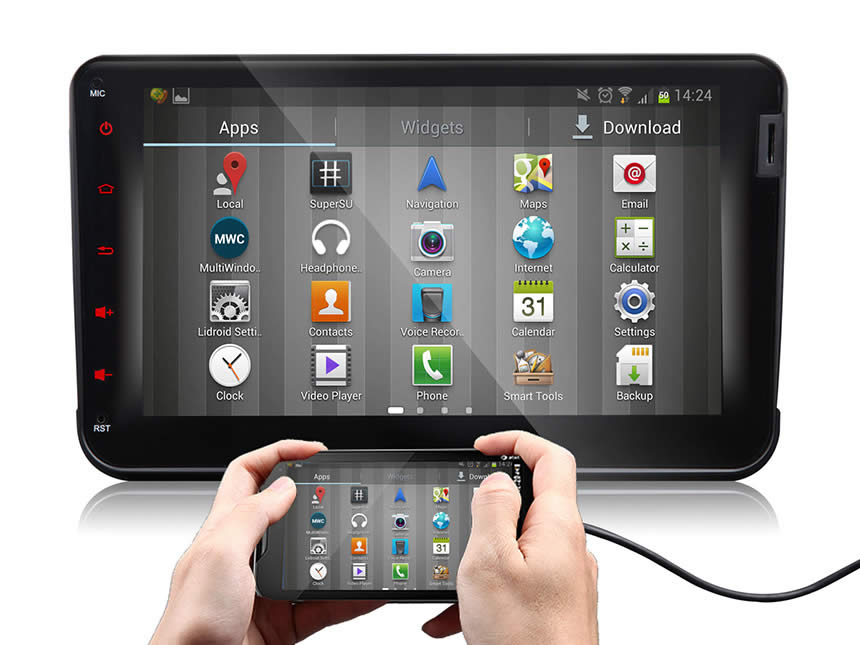

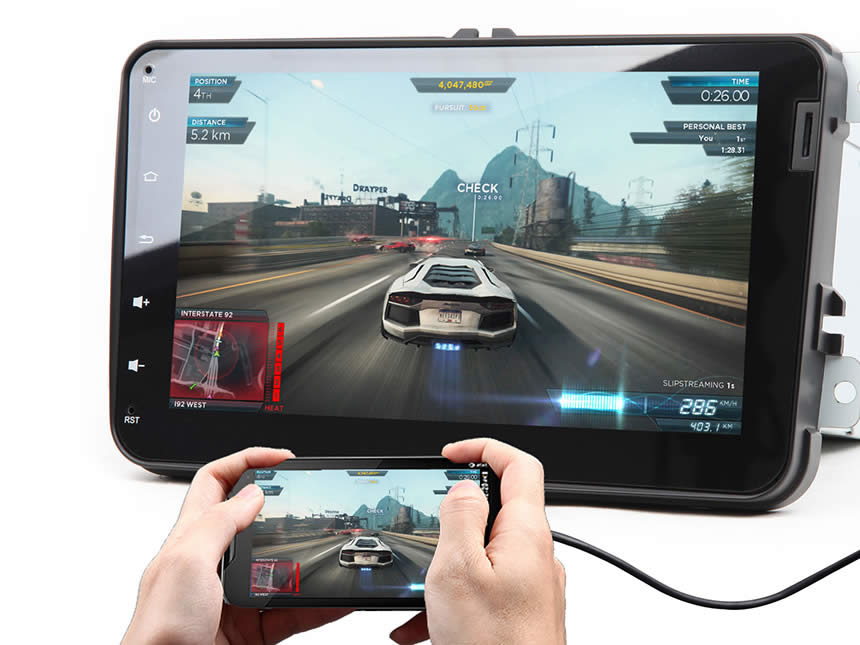

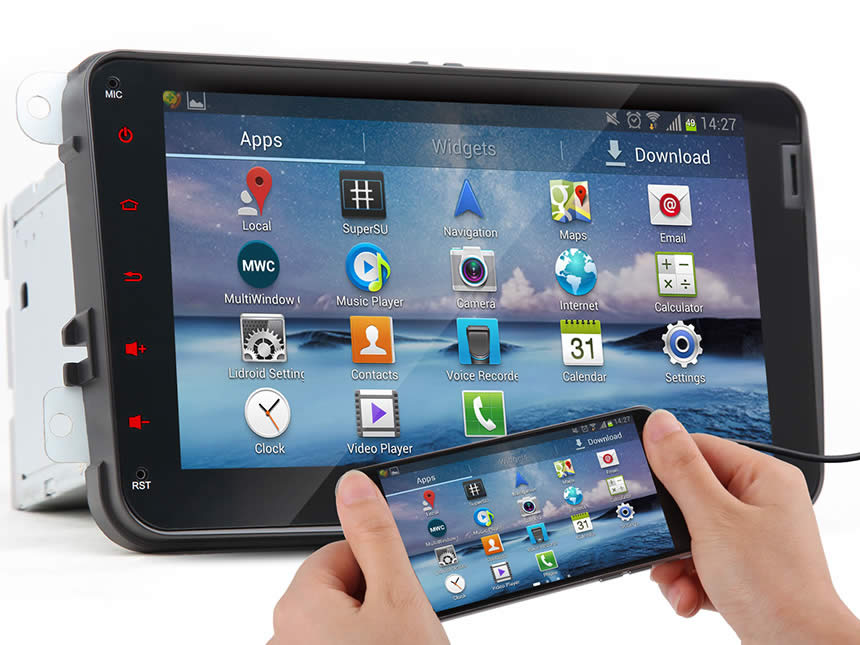

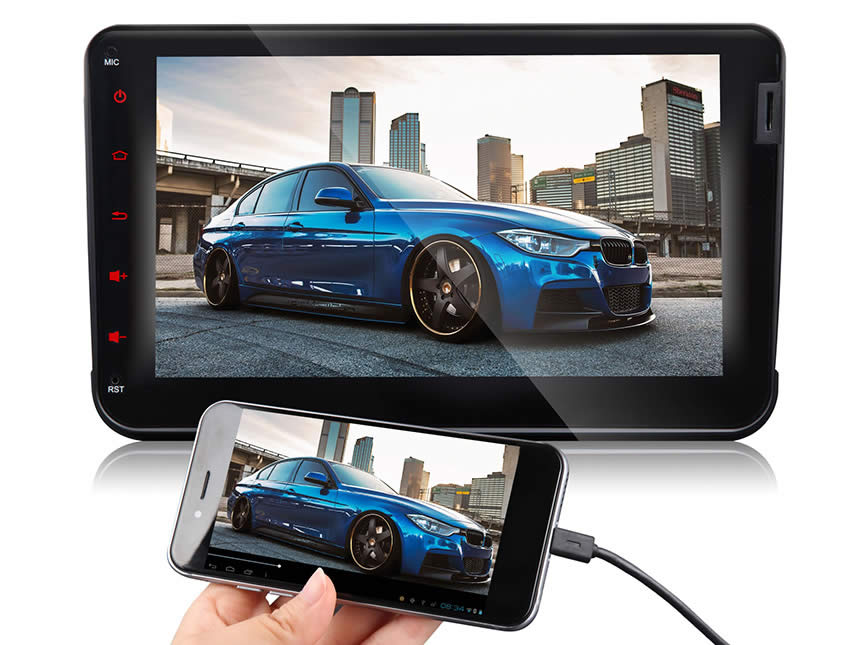

| Mutual Control Between HU & Phone | Yes(supports Mutual Control Between Head Unit & Your Android Smart Phone) |
| Screen |

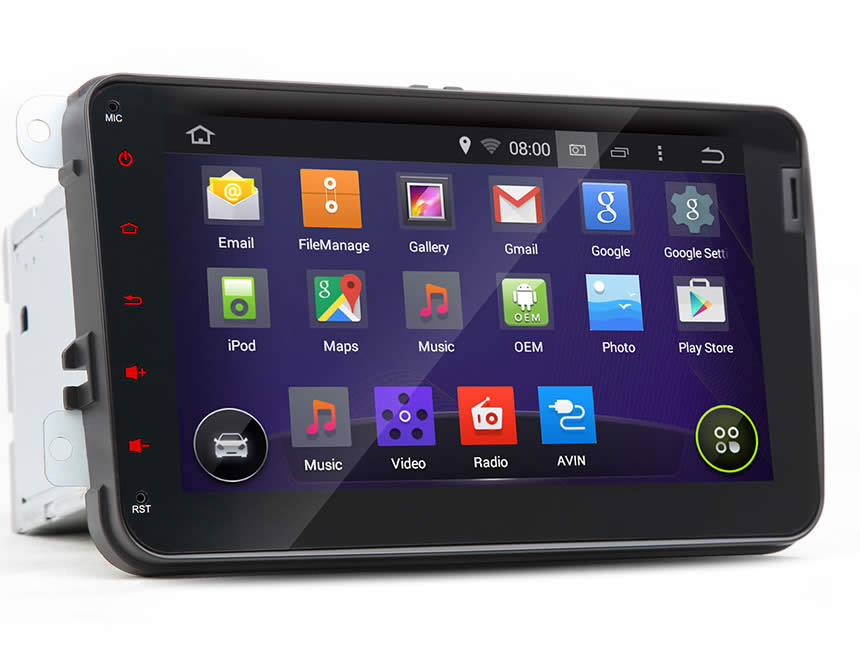

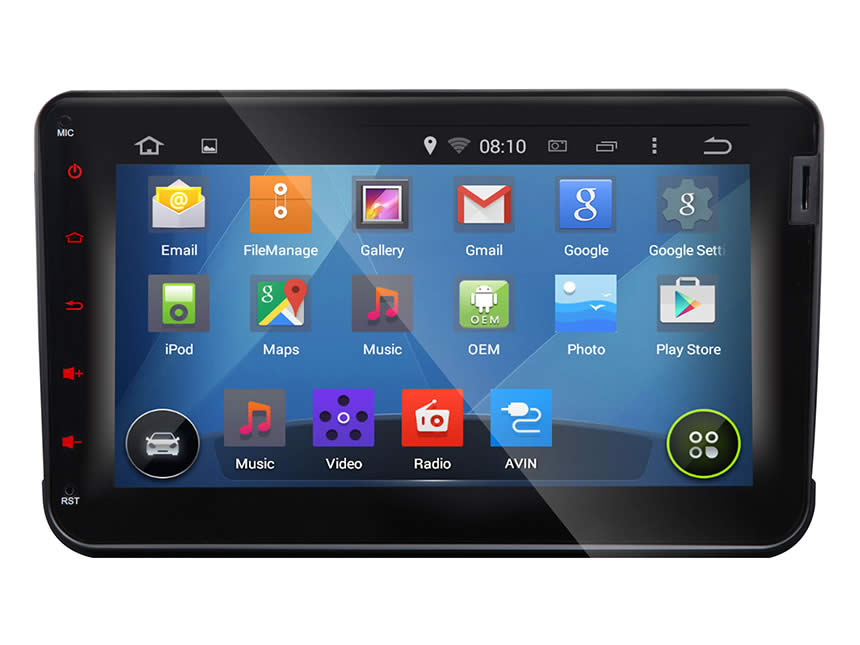

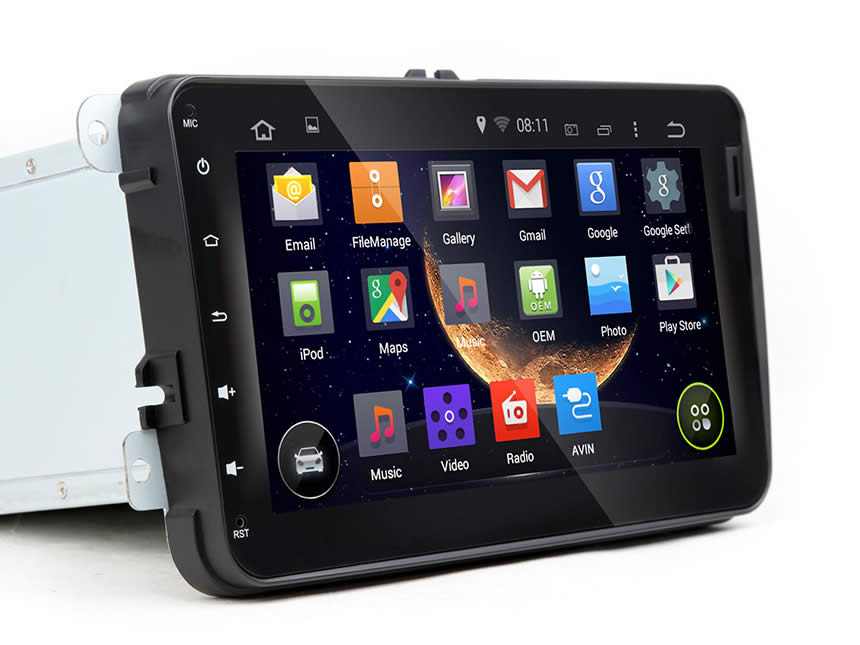

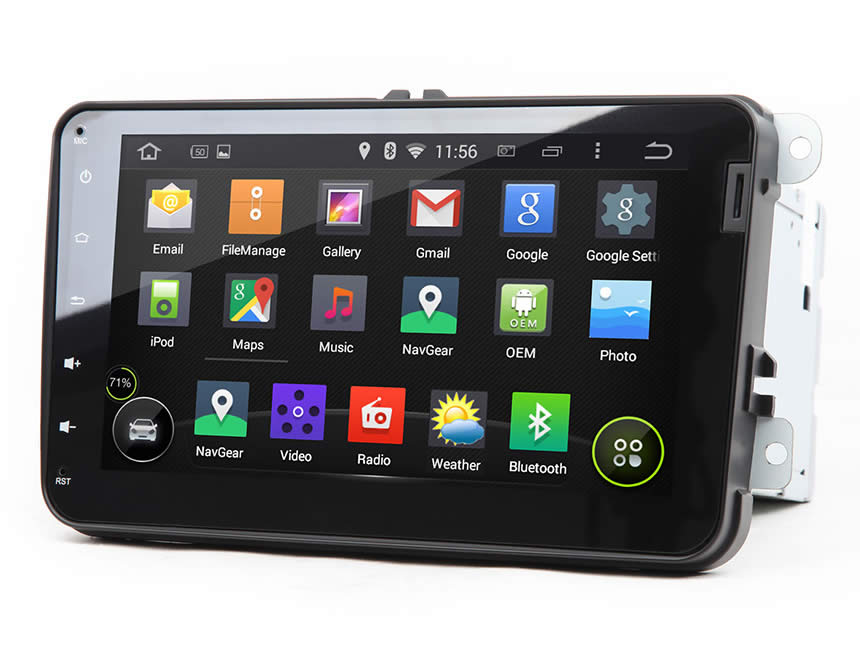

| Type | 8 Inch High Definition Digital Capacitive Touch Screen |
| Resolution | 800*480(WVGA) |
| Touch Screen Function | Yes |
| Changeable Startup Logo | 86 car logos available. Customers can also use a picture from their SD card as their startup logo.(Enter Factory Setting to choose, Code:1688)86 car logos available. Customers can also use a picture from their SD card as their startup logo. (Enter Factory Setting to choose, Code:126) |
| Built-In Clock Display Function | Yes |
| Built-in LED Button Color Options | Fully DIY Button Colors. 9 LED Button Colors for you to choose from.(Red, Green, Blue, Pink, Apple Green, Sky Blue, Yellow, White, Multicolor). |
| Dynamic Background Pictures | 8 dynamic backgrounds available. Customers can also use their own pictures as background. |
| Image Brightness Adjustable | Yes |
| Bluetooth |
| Make and Receive Calls Hands Free | Yes (Compatible with devices with Bluetooth 2.0 or above, including smartphones from Apple, Samsung, HTC, Sony, etc.) |
| Bluetooth MP3 Player Function | Yes (This function is only compatible with devices supporting Bluetooth Audio Output) |
| Built-in Microphone | Yes |
| Support Bluetooth Phonebook Function | Yes |
| Support Bluetooth Contact Search | Yes |
| Connect Code | 0000 (Name: CAR KIT) |
| TV & Radio |
| Radio Stations | 30 Stations Memory |
| Built-In RDS Radio Receiver Function | Yes |
| Radio Frequency Region | China, Europe, Eastern Europe, Russia, USA 1, USA 2, Japan |
| Audio & Video |
| Max power | 4x50W Surround Stereo |
| EQ (Effect Compensation) | FLAT VOICE CUSTOM ROCK POP JAZZ CLASSIC |
| Built-in Microphone in the control panel | Yes |

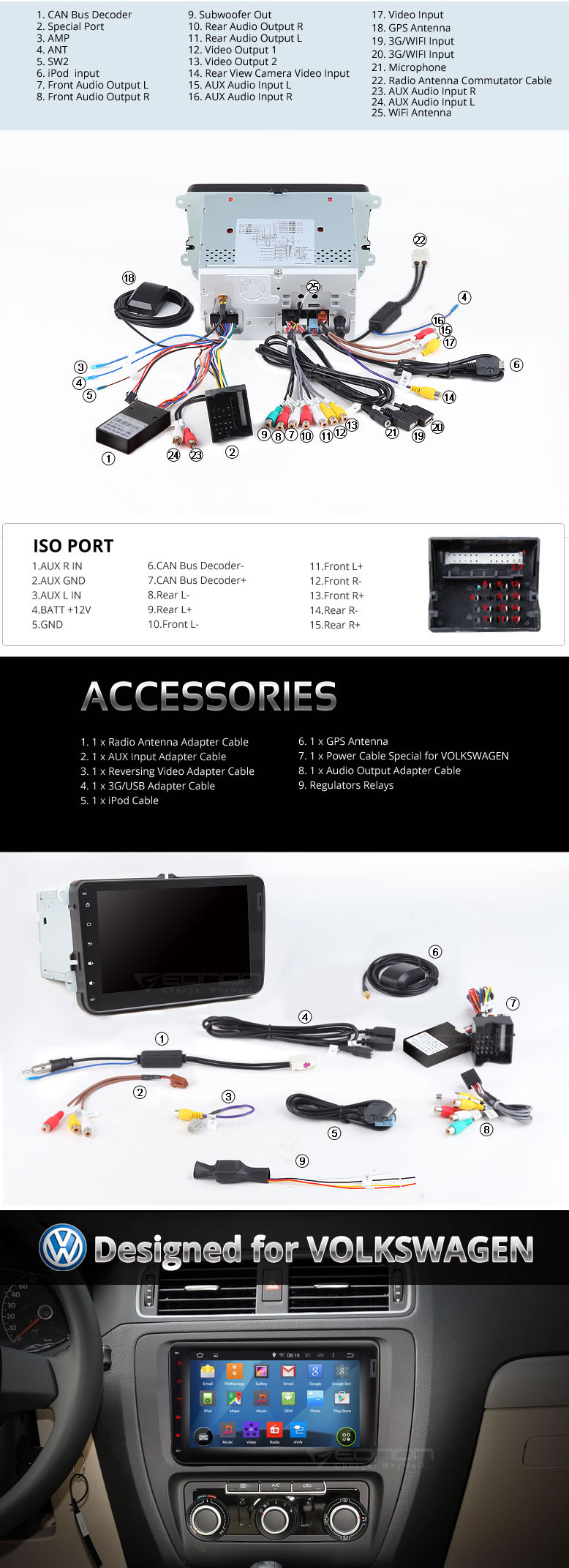

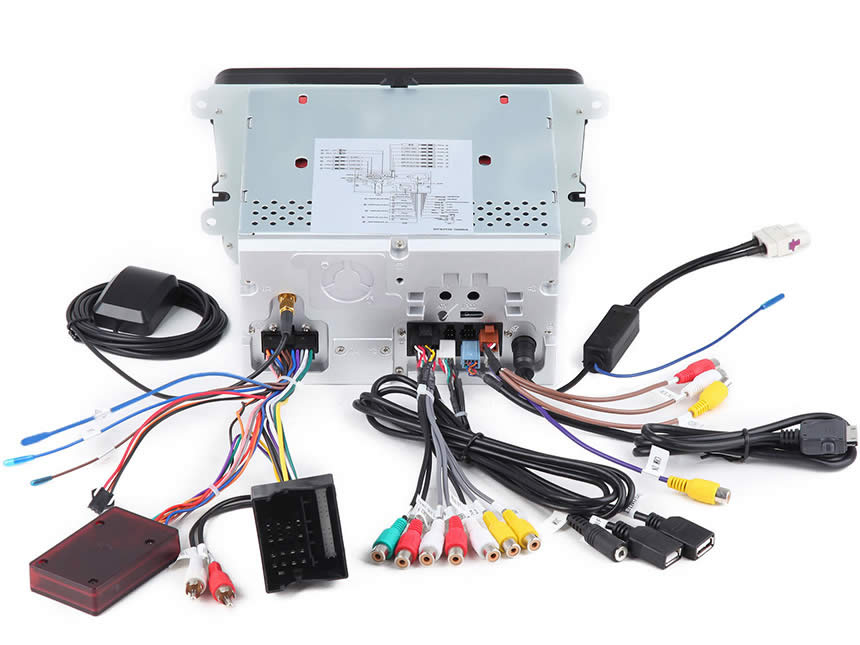

| Input & Output |
| RCA Audio/Video Output | Yes |
| AUX Audio/Video input | Yes |
| Back Sight Input to Camera | Yes |
| Built in Amplifier | Yes |

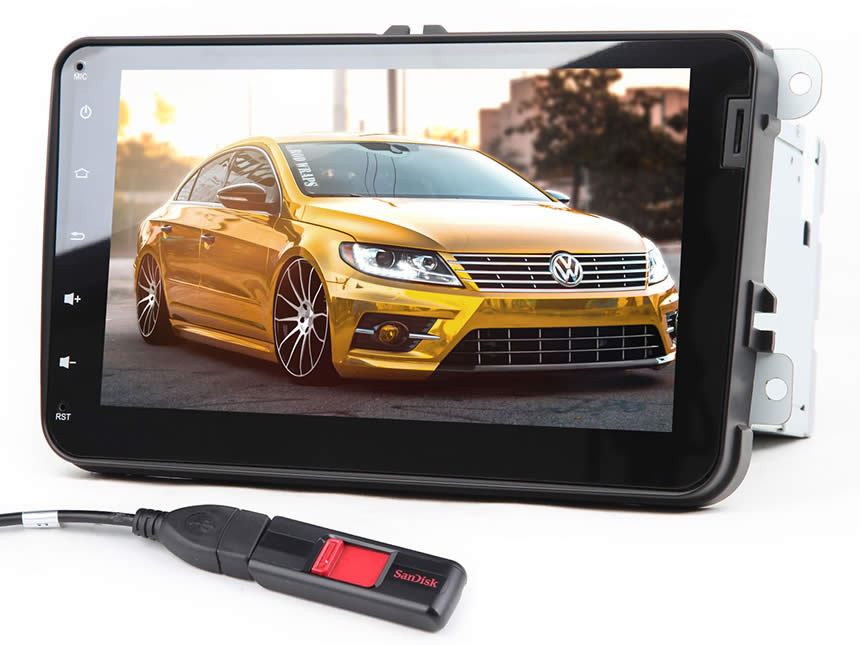

| USB/SD slot maximum compatibility | USB port / Micro SD card reader Supports USB flash drives and MP3 players with up to 32G of storage, but external hard drives are not supported. |
| Subwoofer Output | Yes |
| GPS Antenna Input | Yes |
| USB/SD Supported Video Formats | Supports MPEG-1/2/4、H264、RMVB、DivX…all Android video formats, network media playing, and 1080P video decoding. |
| Audio Formats | Supports MP3,WMA,WAV,AC3,OGG,FLAC etc, and network audio playing. |
| Picture Formats | Supports JPEG,BMP,PNG,TIFF etc. |
| 3G/WIFI Input | Yes |
| FR/FL/RR/RL Four Speakers Output | Yes |
| Built in amplifier FR/FL/RR/RL 4-Channel Audio Output | Yes |
| iPod / iPhone |
| Support iPod/iPhone Input | iPod/iPhone |
| Support iPod/iPhone Music Playback | iPod CLASSIC/iPod NANO/iPod TOUCH/ iPhone 4/ iPhone 4s/ iPhone 5/ iPhone 5s/ iPhone 5c (Apple Lightning to 30-pin Adapter is required for iPhone 5, iPhone 6 series) |
| Can be charged when connecting | Yes |
