| General |
| Installation Type | ISO 1 DIN Size((Note: Before purchasing, please confirmthe size and shape of your console panel. If the mounting dimensions do notmatch our device''s dimensions, please consult our customer servicefirst.) |

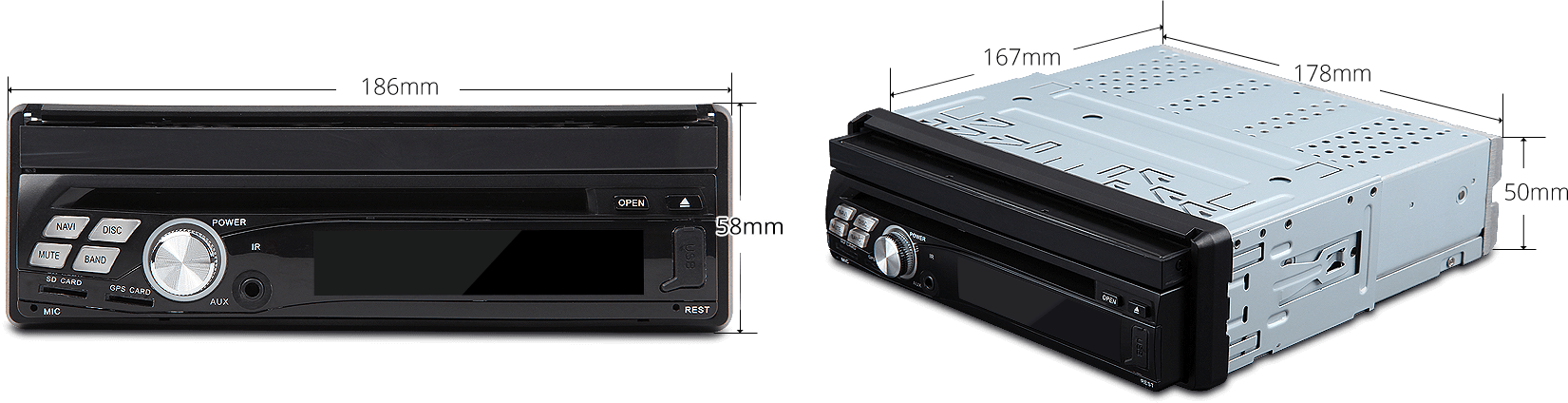

| Installation Size | 178(length)×167(width)×50(height)mm |
| Gross Weight | 2.8kg |
| Power Supply | DC 12V |
| Max Working Current | 15A |
| Steering Wheel Control Function | Yes |
| Menu Language | 85 kinds of languages, including English/Spanish/French/German/Portuguese/Italian/Russian/Turkish/Norwegian/Polish, etc. |
| Auto-memory Function | Yes |
| Net Weight | 2.1kg |
| Operation System | Android 5.1 |
| CPU Processor | RK3188 1.6GHz Cortex A9 Quad-Core |
| RAM | SAMSUNG DDR3, 1GB |
| Memory | 16GB |

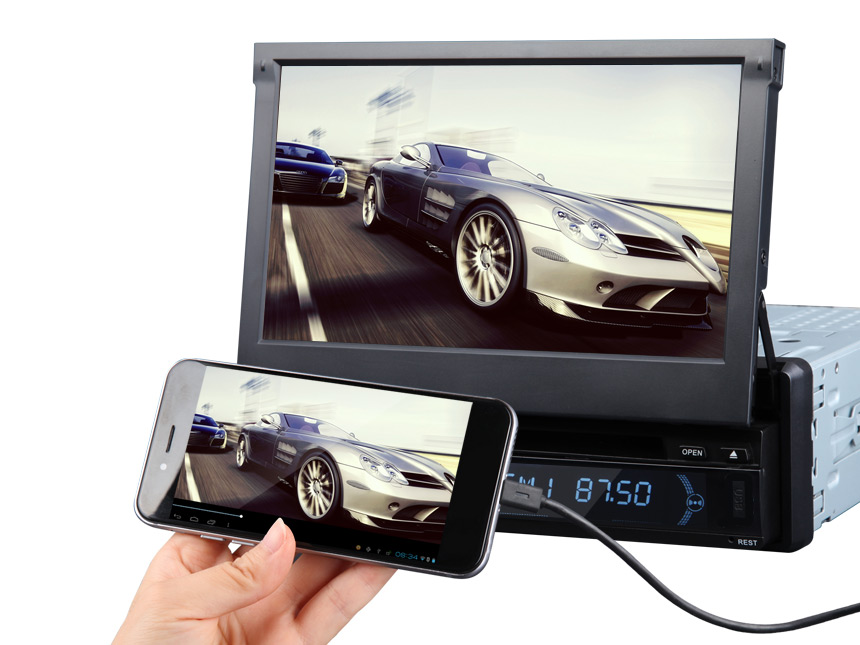

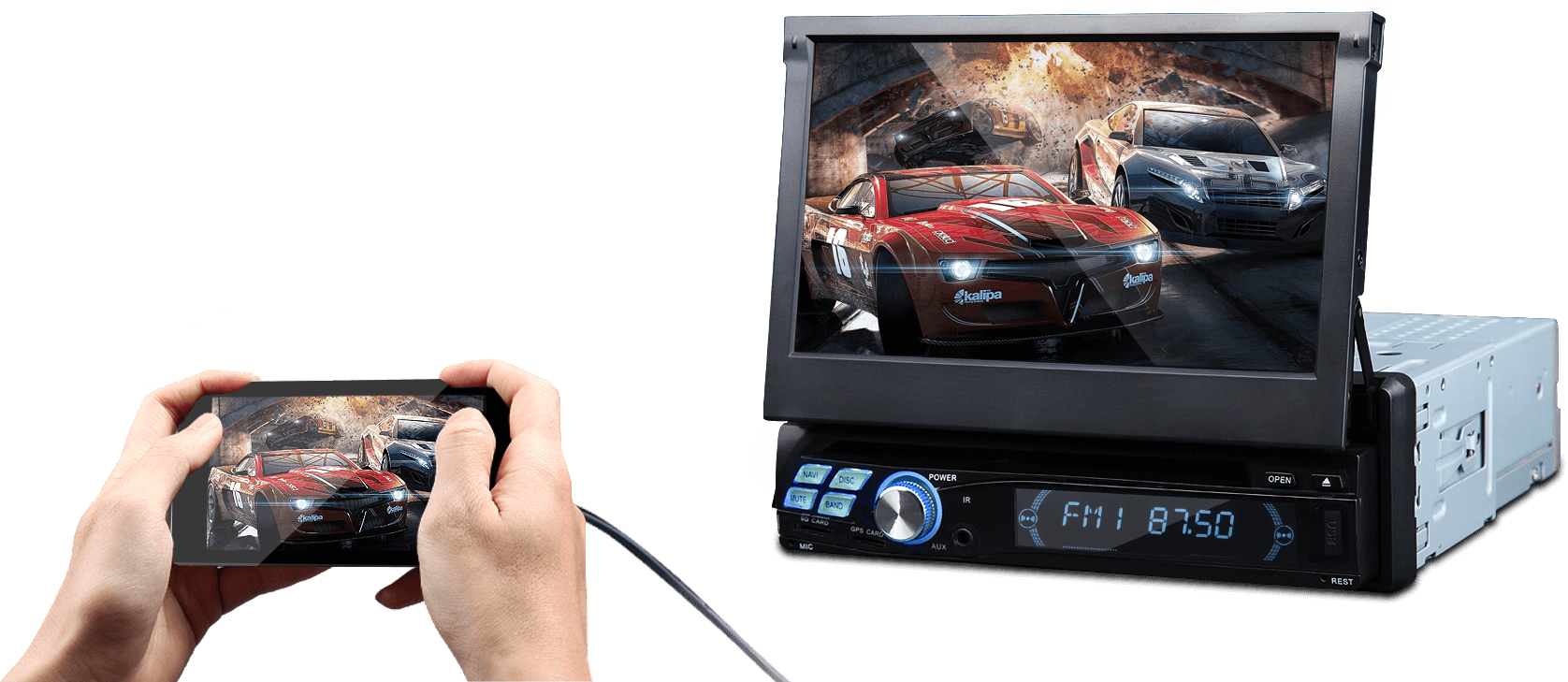

| Mutual Control Between HU & Phone | Yes (Supports mutual control between head unit & your Android smart phone) |
| Screen |

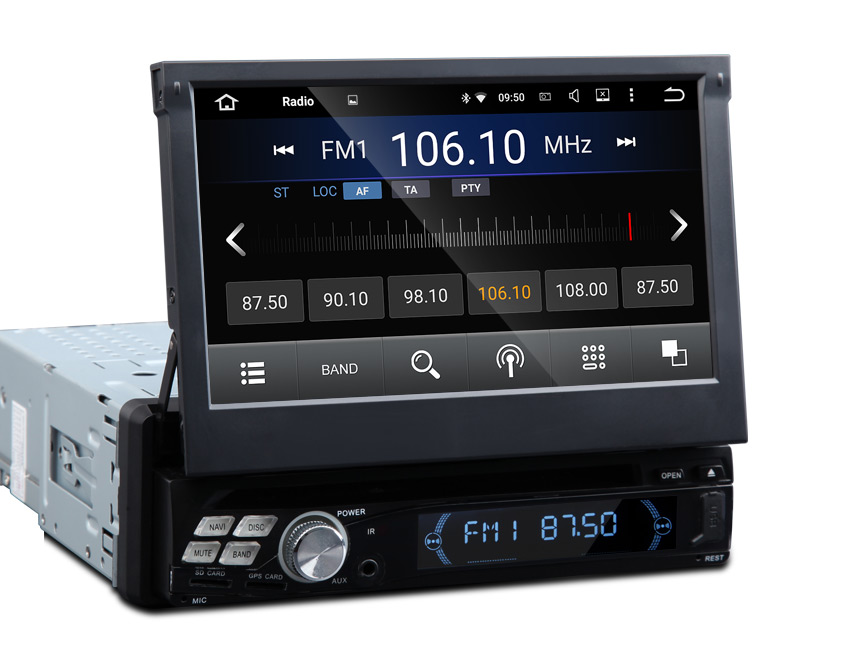

| Type | 7 Inch High Definition Digital Capacitive Touch Screen |
| Resolution | 800*480(WVGA) |
| Touch Screen Function | Yes |
| Changeable Startup Logo | You can choose one of the 86 built-in car logos or any image from your SD card as your boot logo (enter the factory setting, password : 126.) |
| Built-In LCD Clock Display Function | Yes |
| Built-in LED Button Color Options | No(Default Button Light Color: Blue) |
| Dynamic Background Pictures | 6 dynamic backgrounds available. Customers can also use their own pictures as background. |
| Image Brightness Adjustable | Yes |
| DVD |
| Compatible Format | AVI/DVD/DVD+R/DVD-R/DVD+RW/DVD-RW/MP3/CD/CD-RW/JPEG |
| Bluetooth |
| Make And Receive Calls Hands free | Yes (Compatible with devices with Bluetooth 2.0 or above, including smartphones from Apple, Samsung, HTC, Sony, etc.) |
| Bluetooth MP3 Player Function | Yes (This function is only compatible with devices supporting Bluetooth Audio Output) |
| Support Bluetooth Phonebook Function | Yes |
| Support Bluetooth Contact Search | Yes |
| Connect Code | 0000 (Name: CAR KIT) |
| TV & Radio |
| Radio Stations | 42 Stations Memory |
| Built-In RDS Radio Receiver Function | Yes |
| Radio Frequency Region | China, Europe, Eastern Europe, Russia, USA 1, USA 2, Japan |
| Audio & Video |
| Max power | 4x45W Surround Stereo |
| EQ (Effect Compensation) | FLAT VOICE CUSTOM ROCK POP JAZZ CLASSIC |
| Built-in Microphone in the control panel | Yes |

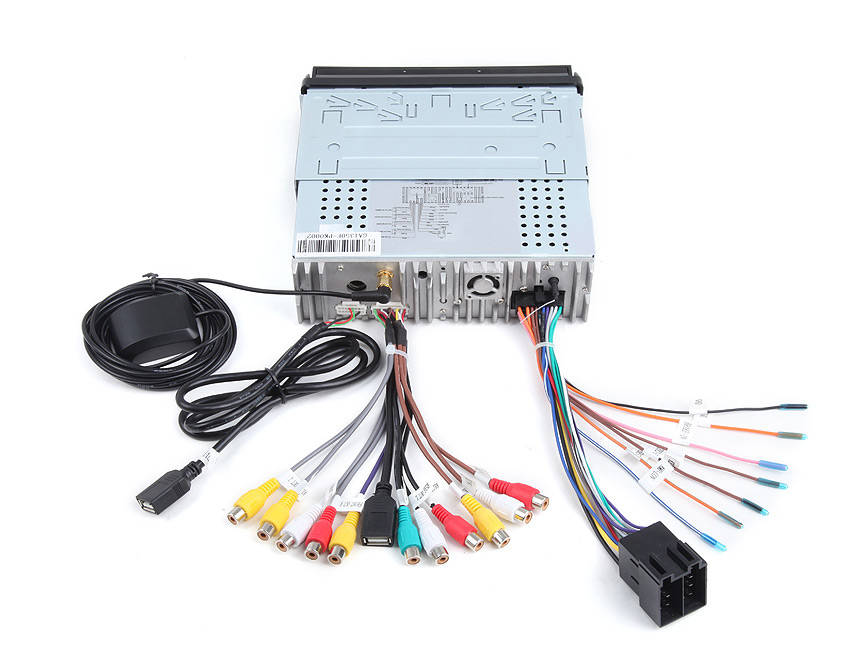

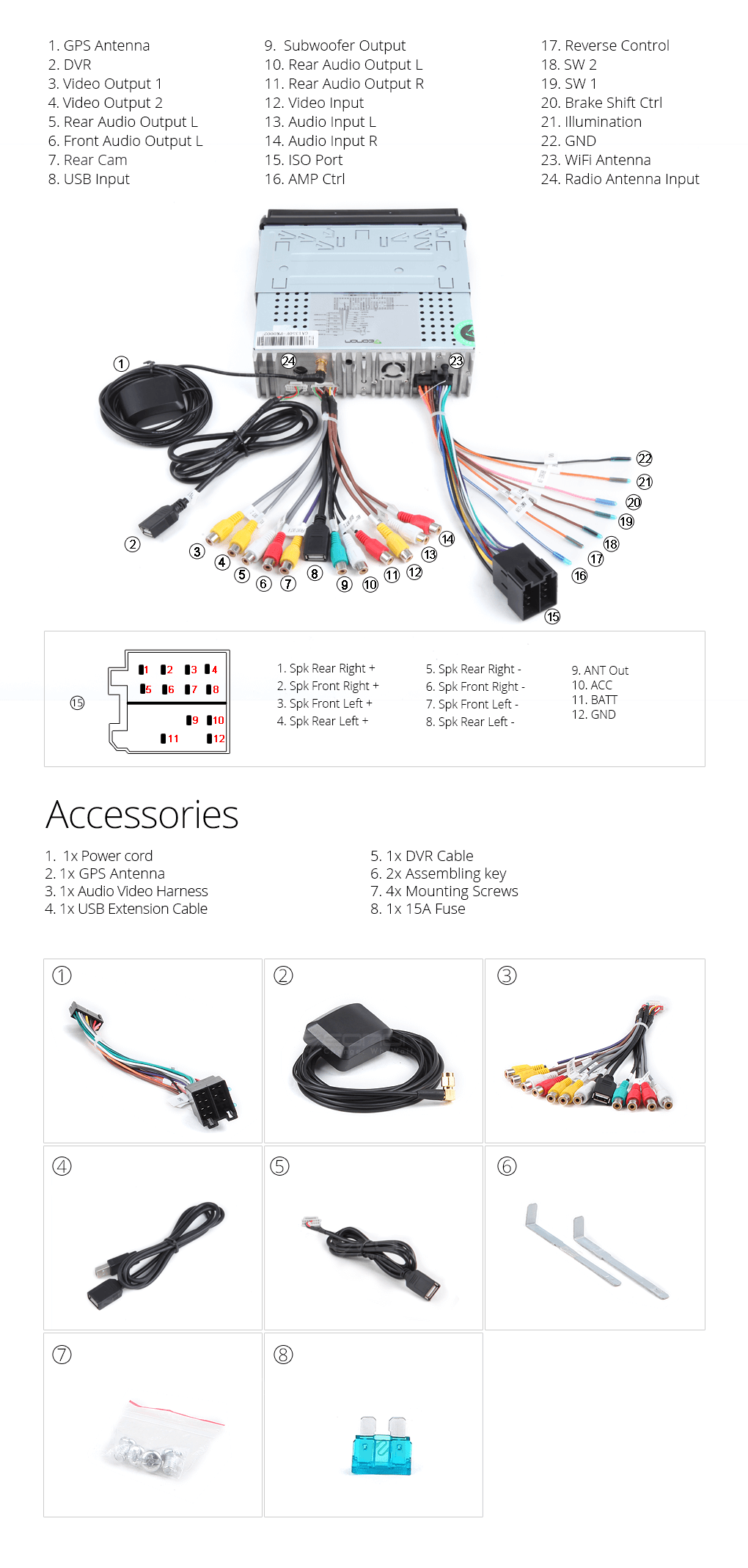

| Input & Output |

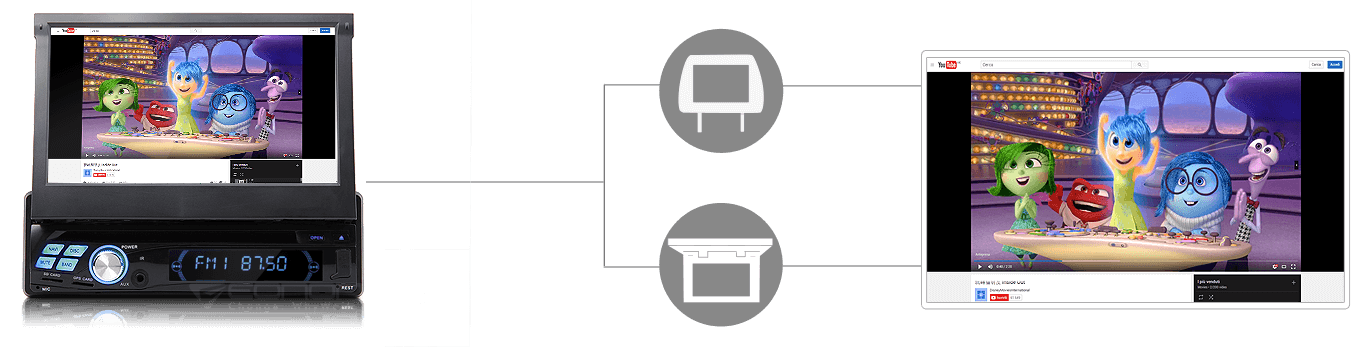

| RCA Audio/Video Output | Yes |
| AUX Audio/Video input | Yes |
| Back Sight Input to Camera | Yes |
| Built in amplifier | Yes |
| Subwoofer Output | Yes |
| GPS Antenna Input | Yes |
| USB/SD Supported Video Formats | Supports MPEG-1/2/4、H264、RMVB、DivX…all Android video formats, network media playing, and 1080P video decoding. |
| Audio Formats | Supports MP3,WMA,WAV,AC3,OGG,FLAC etc, and network audio playing. |
| Picture Formats | Supports JPEG,BMP,PNG,TIFF etc. |
| FR/FL/RR/RL Four Speakers Output | Yes |
| Built in amplifier FR/FL/RR/RL 4-Channel Audio Output | Yes |
| USB/Micro SD slot maximum compatibility | USB port / Micro SD card reader Supports USB flash drives and MP3 players with up to 32G of storage, but external hard drives are not supported. |
